Sale

Original price was: £13,200.00.Current price is: £11,966.00.

Bespoke solar PV systems FULLY INSTALLED PRICE at no hidden charges.

– Installed, commissioned and tested by a fully qualified team to ensure MCS compliance

– Features new and improved high energy-yielding JA solar panels, 3.3kWh Storage battery and smart energy inverter

– Installed, commissioned and tested by a fully qualified team to ensure MCS compliance

If you have any queries regarding this package please contact Engenera: email cinfo@renuitt.com or you can call them on
+44 20 81065556.

Out of stock

Enquire This Package
Category:

Description

Use our Solar Panel Configurator to establish which solar PV system size you require for your building before ordering.

Energy prices are at an all-time high, and there is the ever growing worry of global warming, meaning there is no better time to invest in solar power.

RENUiTT is an award-winning company in the renewable energy sector. We have become one of the market leaders in renewable installations, and were recognised as National Solar PV Installer.

With an RENUiTT solar system you will receive a full solar panel design specific to your building’s roof, along with a complete report on your specific system. All systems feature new and improved JA Solar Panels and are installed by a fully qualified engineer then commissioned and tested by the electrical team to ensure it is MCS (Microgeneration Certification Scheme) compliant. Once complete, you’ll receive a handover pack with manuals, warranty information and maintenance advice.

RENUiTT is covered by HIES, the Home Insulation and Energy Systems Quality Assured Contractors Scheme, a strict accreditation process that ensures high-quality is always maintained.

What is a Solar (PV) System?

Solar panel electricity systems, also known as solar photovoltaics (PV), capture the sun’s energy using photovoltaic cells. These cells don’t need direct sunlight to work – they can still generate electricity on a cloudy day. The cells convert the sunlight into electricity, which can be used to run household appliances and lighting.

Benefits

  • Reduce your electricity bills: Sunlight is free and readily available, so once you’ve paid for the initial installation your electricity costs will be reduced. You will receive a tailored report by RENUiTT highlighting your potential savings.
  • Cut your carbon footprint: Solar electricity is a green, renewable energy source and doesn’t release any harmful carbon dioxide or other pollutants. A typical home solar PV system could save over a tonne of carbon dioxide per year.

How is Energy Generated Stored?

Using a battery storage system allows you to capture generated solar energy that would otherwise be exported to the grid. Your system includes a 3.3kWh Battery, connected to a hybrid inverter. This means you can make the most of your free electricity and use it at a time that suits you. The inverter will monitor any export on your system, and will automatically charge the battery if you are producing more energy than you are consuming.

System Components

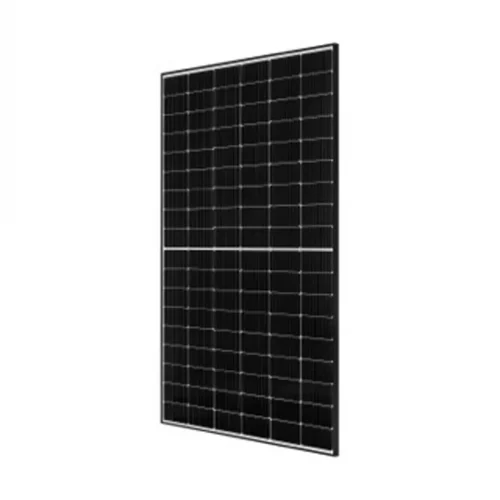

New JA Deep Blue 3.0 JAM54S30-410/MR 410w Solar Module

  • JA Solar is a world leading manufacturer of high-efficiency, mono-crystalline solar cells
  • Sleek appearance with black frame
  • High module conversion efficiency – up to 21.0%
  • 0~+5W power tolerance
  • Better temperature-dependent performance
  • Higher output power and better mechanical loading tolerance
  • Reduced shading effect on the energy generation and hotspot risk
  • 12 year product warranty
  • 25 year warranty for extra linear power output (0.55%)

Growatt SPH3600 Hybrid
SPH 3000-6000TL BL-UP, single-phase hybrid inverters are ideal for home systems. When paired with a low voltage battery, these inverters provide an uninterruptible power supply to a home.

  • Dual MPP trackers
  • Maximum Input Current per MPPT: 13.5A
  • UPS function, 10ms transition
  • Scalable system available
  • DC/AC ratio up to 2.0
  • Support lithium and lead-acid battery
  • VPP interface ready
  • Smart load control via dry contact
  • Remote smart O&M
  • IP65 protection & natural cooling
  • 10-year warranty
    Growatt ML33RTA 3.3kWh Battery Datasheet

Growatt ML33RTA 3.3kWh Battery

  • Compact size and easy installation
  • High energy density and efficiency
  • Excellent safety of LiFePO4 battery
  • DoD up to 93%
  • Lifetime of 6,000 cycles
  • Dimensions (W/D/H mm): 444/131/394
  • IP20
  • Parallel connection: max 6 pack
  • 10 Years warranty

Add-On Smart Optimiser  – (Optional Add On)

  • Depends on install cases, you may require smart optimiser. With this, it would provides up to 30% more energy by optimising each module’s performance.
  • <5s module auto-mapping
  • Arc fault pinpoint positioning along PV cable
  • 450W rated input DC power
  • MC4 input and output connector
  • Operating temperature range between -40°C to +85°C
  • Humidity range is 0 %RH~100 %RH
  • IP68 degree of protection
  • The add-on optimiser can be added to your order at checkout (subject to site survey)

What’s Included?

  • A complete report based on your specific system
  • Full design specific to your building’s roof
  • Specialist mounting system which suits your type of roof tile
  • Complete installation service with MCS commissioning
  • Panels installed on a maximum of two roof elevations
  • Central location for all hardware
  • Inclusion of external wiring and ducting from the solar panels connection point to main connection point/meter
  • Scaffold included and provision for maximum of one elevation( subject to site survey)
  • Access must be freely available to all areas required for installation, plus connection to existing wi-fi network
  • A handover pack with manuals, warranty information and maintenance advice
  • 12 month installation warranty to cover any issue post installation
  • Please refer to Standard Install and Surcharges for reference and potential extra costs

If you have any queries regarding this package please contact RENUiTT: info@renuitt.com or call on +44 (0)20 81065556.

Ordering Process

1. Order your solar system based on your roof space

2. You will be contacted by RENUiTT to request current energy rate and to confirm your property within 2 business days.

3. A qualified surveyor will visit your property to conduct a complete technical survey within 10 business days upon receiving the above information.

4. Once the survey is completed, the information will be passed to the design team where RENUiTT will proceed to generate a complete design of your PV system, utilising 3D modelling software within 10 business days upon completion of the survey. Any additional costs will be discussed and agreed at this stage.

5. If a revision to the order is required RENUiTT will advise on which system is suitable for your property to re-order. You have the option to cancel your order or re-order the correct item.

6. Once the correct size system and design are confirmed alongside any additional costs (if required), an installation date will be booked within 30 business days upon acceptance of design. If the system is above 3.68kW an application will be made to the relevant Distribution Network Operator for connection. Please note that in some instances this can take up to 60 business days and will therefore delay installation until acceptance has been received.

7. Where necessary, scaffolding will be erected.

8. Installation of the panel mounting system and panels will be completed, the inverter and battery storage system will be installed by MCS qualified electricians, the system will be commissioned and tested by the electrical team and once installation is complete.

9. A handover pack will be prepared and issued within 14 business days of commissioning.

Specification

Brand Name:  Solar Panels

Type:  Engenera

Delivery and Returns

Delivery
  •   Delivery is via a 2 person carrier, to an outdoor area or to your garage. Our carrier will contact you via phone, text or email.
  •   Additional day(s) transit may be required for remote areas.
  •   All orders must be delivered within 15 business days after contact from the delivery company. If the delivery company is unable to contact you after multiple attempts, your order may be returned to inventory and refunded to your original form of payment.
  •   Public and Regional holidays may affect delivery lead times.
  •   Delivery times may vary in the event of adverse weather conditions.
  •   Please note that we are only able to deliver to the UK mainland, excluding Post Office boxes and BFPO.
  •   Further postcode delivery restrictions might apply to this item.
  •   Delivery is subject to reasonable access to the area without damaging customer’s property or the product, or jeopardising the safety of the delivery personnel The recipients must be home at the time of delivery. An adult of 18 years or older will need to be present during the delivery.
